Lab 2: SAML Identity Provider (IdP) Lab

The purpose of this lab is to configure and test a SAML Identity Provider. Students will configure the various aspect of a SAML Identity Provider, import and bind to a SAML Service Provider and test IdP-Initiated SAML Federation.

Objective:

• Gain an understanding of SAML Identity Provider(IdP) configurations and its component parts
• Gain an understanding of the access flow for IdP-Initiated SAML

Lab Requirements:

• All Lab requirements will be noted in the tasks that follow

Estimated completion time: 25 minutes

TASK 1 ‑ Configure the SAML Identity Provider (IdP)

IdP Service

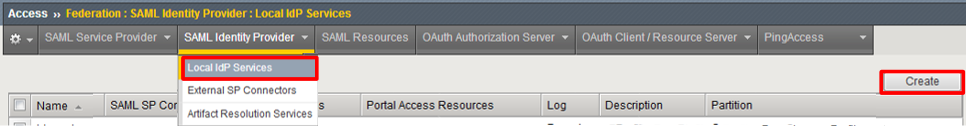

1. Begin by selecting: Access ‑> Federation ‑> SAML Identity Provider ‑> Local IdP Services

2. Click the Create button (far right)

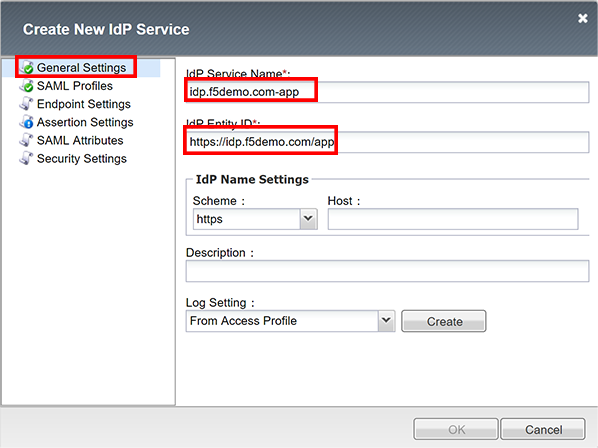

3. In the Create New SAML IdP Service dialog box, click General Settngs in the left navigation pane and key in the following:

   IdP Service Name:	idp.f5demo.com‑app
   IdP Entity ID:	https://idp.f5demo.com/app



   Note

   The yellow box on “Host” will disappear when the Entity ID is entered

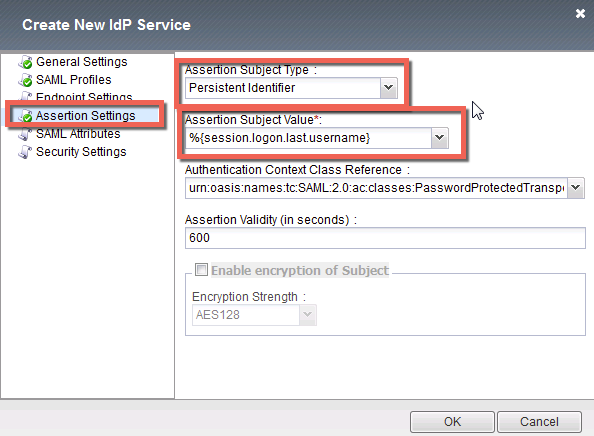

4. In the Create New SAML IdP Service dialog box, click Assertion Settings in the left navigation pane and key in the following:

   Assertion Subject Type:	Persistent Identifier (drop down)
   Assertion Subject Value:	%{session.logon.last.username} (drop down)

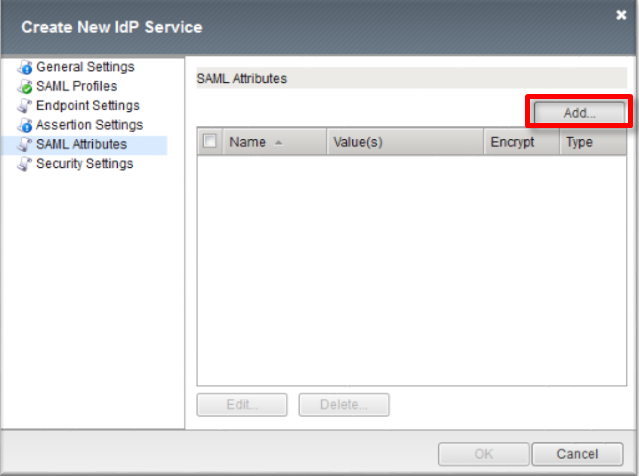

5. In the Create New SAML IdP Service dialog box, click SAML Attributes in the left navigation pane and click the Add button as shown

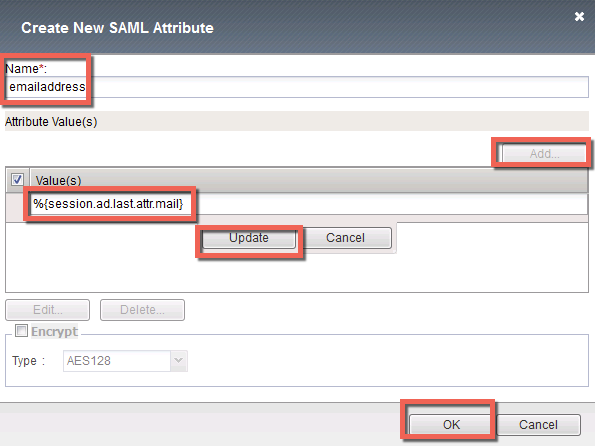

6. In the Name field in the resulting pop-up window, enter the following: emailaddress

7. Under Attribute Values, click the Add button

8. In the Values line, enter the following: %{session.ad.last.attr.mail}

9. Click the Update button

10. Click the OK button

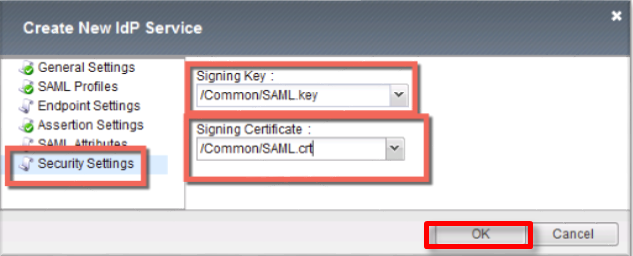

11. In the Create New SAML IdP Service dialog box, click Security Settings in the left navigation pane and key in the following:

    Signing Key:	/Common/SAML.key (drop down)
    Signing Certificate: | /Common/SAML.crt (drop down)

    Note

    The certificate and key were previously imported

12. Click OK to complete the creation of the IdP service



SP Connector

1. Click on External SP Connectors (under the SAML Identity Provider tab) in the horizontal navigation menu

2. Click specifically on the Down Arrow next to the Create button (far right)

3. Select From Metadata from the drop down menu

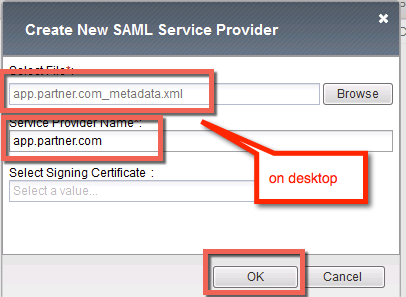

4. In the Create New SAML Service Provider dialogue box, click Browse and select the app.partner.com_metadata.xml file from the Desktop of your jump host

5. In the Service Provider Name field, enter the following: app.partner.com

6. Click OK on the dialog box



   Note

   The app.partner.com_metadata.xml file was created previously. Oftentimes SP providers will have a metadata file representing their SP service. This can be imported to save object creation time as has been done in this lab.

7. Click on Local IdP Services (under the SAML Identity Provider tab) in the horizontal navigation menu

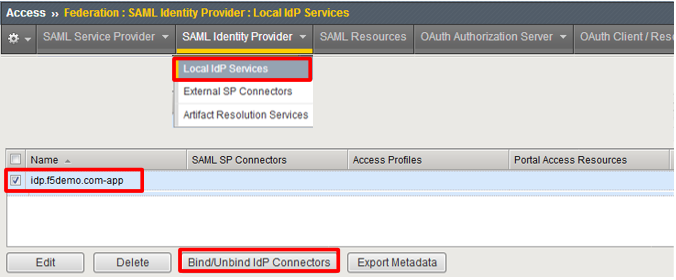

8. Select the Checkbox next to the previously created idp.f5demo.com and click the Bind/Unbind SP Connectors button at the bottom of the GUI

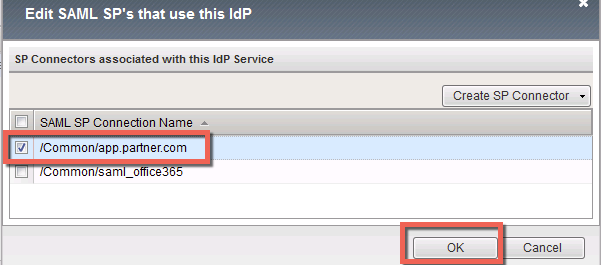

9. In the Edit SAML SP’s that use this IdP dialog, select the /Common/app.partner.com SAML SP Connection Name created previously

10. Click the OK button at the bottom of the dialog box

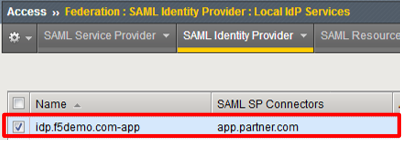

11. Under the Access ‑> Federation ‑> SAML Identity Provider ‑> Local IdP Services menu you should now see the following (as shown):

    Name:	idp.f5demo.com-app
    SAML SP Connectors:	app.partner.com



TASK 2 ‑ Create SAML Resource, Webtop, and SAML IdP Access Policy

SAML Resource

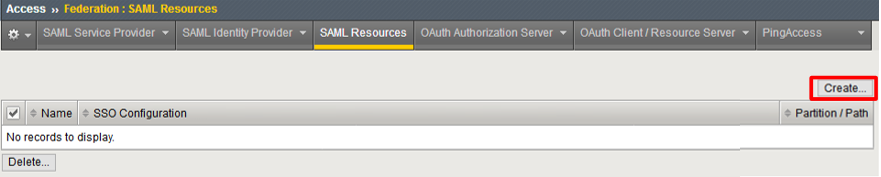

1. Begin by selecting Access ‑> Federation ‑> SAML Resources

2. Click the Create button (far right)

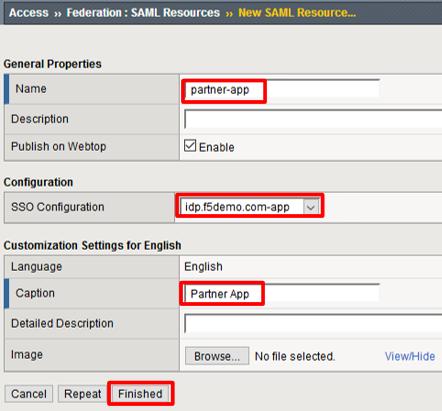

3. In the New SAML Resource window, enter the following values:

   Name:	partner‑app
   SSO Configuration:	idp.f5demo.com‑app
   Caption:	Partner App

4. Click Finished at the bottom of the configuration window








Webtop

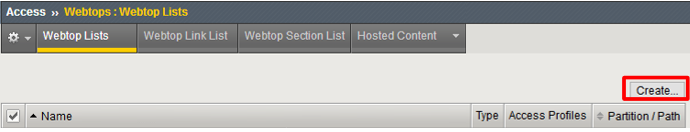

1. Select Access ‑> Webtops ‑> Webtop List

2. Click the Create button (far right)

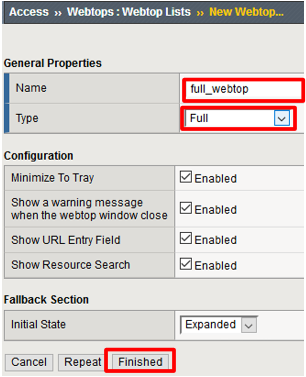

3. In the resulting window, enter the following values:

   Name:	full_webtop
   Type:	Full (drop down)

4. Click Finished at the bottom of the GUI



SAML IdP Access Policy

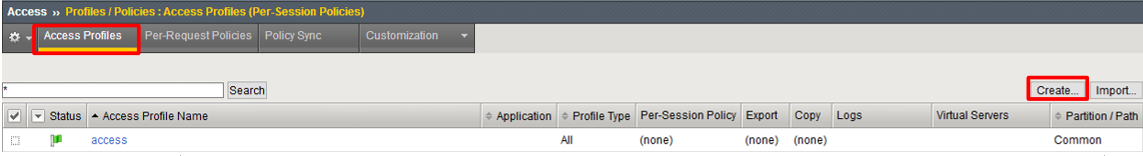

1. Select Access ‑> Profiles/Policies ‑> Access Profiles (Per-Session Policies)

2. Click the Create button (far right)

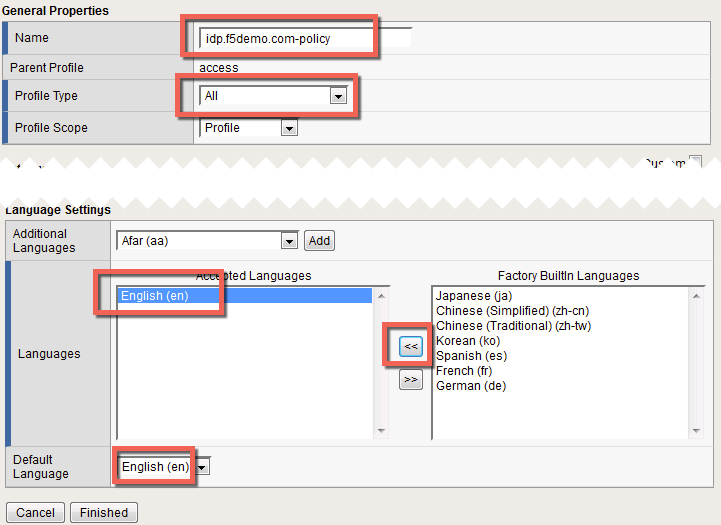

3. In the New Profile window, enter the following information:

   Name:	idp.f5demo.com‑policy
   Profile Type:	All (drop down)
   Profile Scope:	Profile (default)

4. Scroll to the bottom of the New Profile window to the Language Settings section

5. Select English from the Factory Built‑in Languages menu on the right and click the Double Arrow (<<), then click the Finished button.

6. The Default Language should be automatically set



7. From the Access ‑> Profiles/Policies ‑> Access Profiles (Per-Session Policies) screen, click the Edit link on the previously created idp.f5demo.com‑policy line

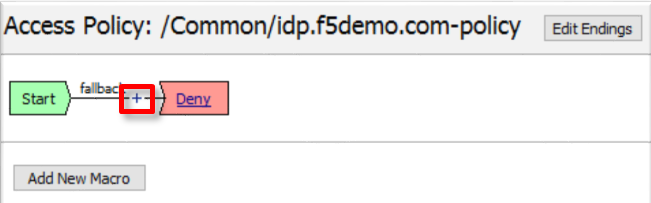

8. In the Visual Policy Editor window for /Common/idp.f5demo.com‑policy, click the Plus (+) Sign between Start and Deny

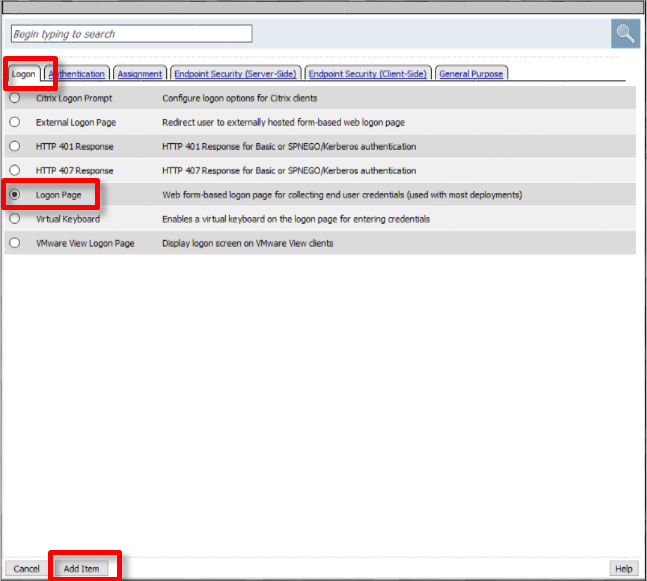

9. In the pop-up dialog box, select the Logon tab and then select the Radio next to Logon Page, and click the Add Item button

10. Click Save in the resulting Logon Page dialog box

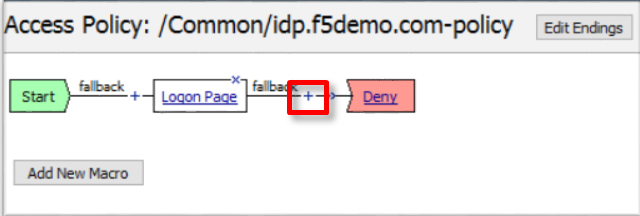

11. In the Visual Policy Editor window for /Common/idp.f5demo.com‑policy, click the Plus (+) Sign between Logon Page and Deny

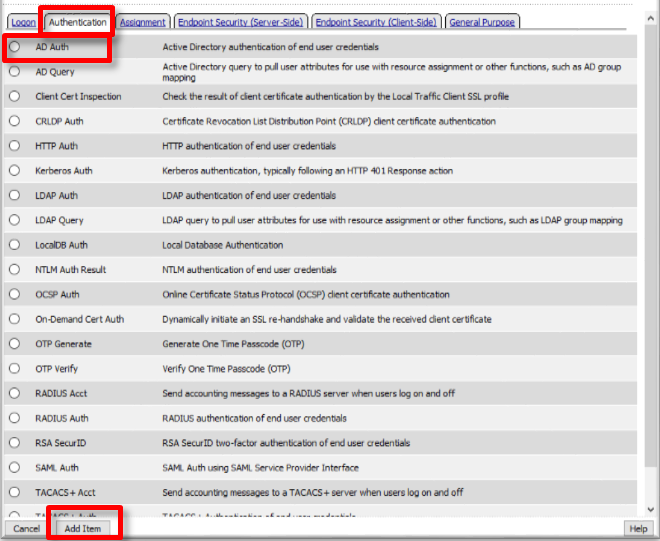

12. In the pop-up dialog box, select the Authentication tab and then select the Radio next to AD Auth, and click the Add Item button

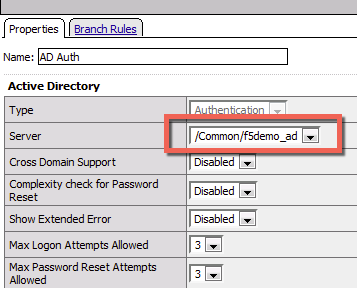

13. In the resulting AD Auth pop-up window, select /Common/f5demo_ad from the Server drop down menu

14. Click Save at the bottom of the window

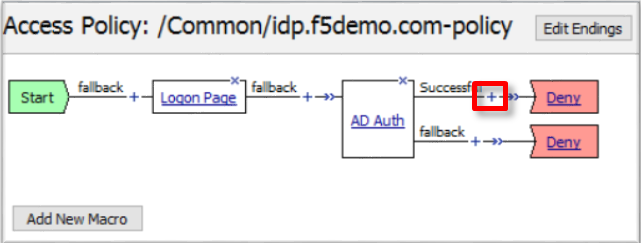

15. In the Visual Policy Editor window for /Common/idp.f5demo.com‑policy, click the Plus (+) Sign on the successful branch between AD Auth and Deny

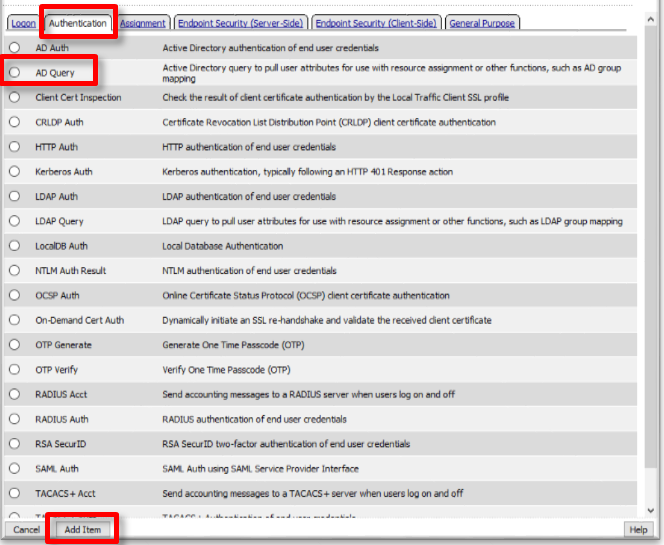

16. In the pop-up dialog box, select the Authentication tab and then select the Radio next to AD Query, and click the Add Item button

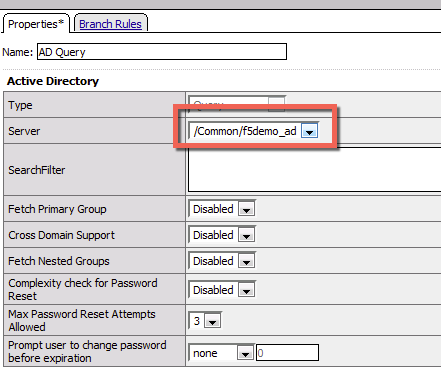

17. In the resulting AD Query pop-up window, select /Common/f5demo_ad from the Server drop down menu

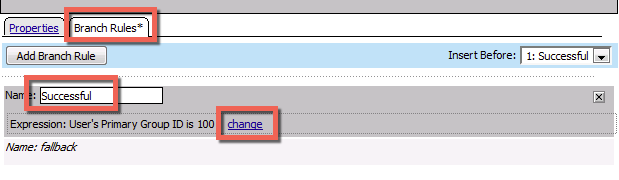

18. In the AD Query pop‑up window, select the Branch Rules tab

19. Change the Name of the branch to Successful.

20. Click the Change link next to the Expression



21. In the resulting pop-up window, delete the existing expression by clicking the X as shown

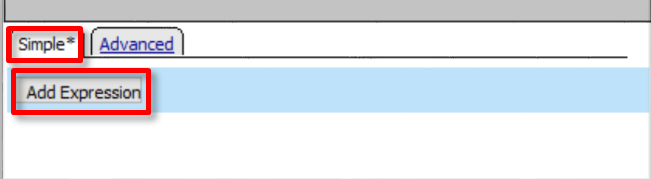

22. Create a new Simple expression by clicking the Add Expression button



23. In the resulting menu, select the following from the drop down menus:

    Agent Sel:	AD Query
    Condition:	AD Query Passed

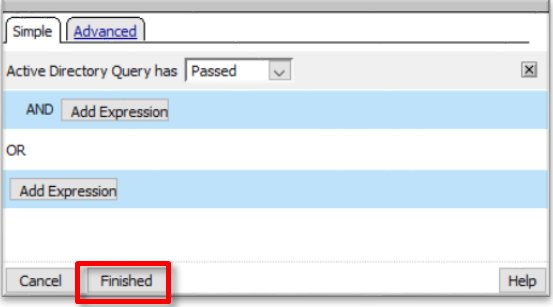

24. Click the Add Expression Button



25. Click the Finished button to complete the expression








26. Click the Save button to complete the AD Query

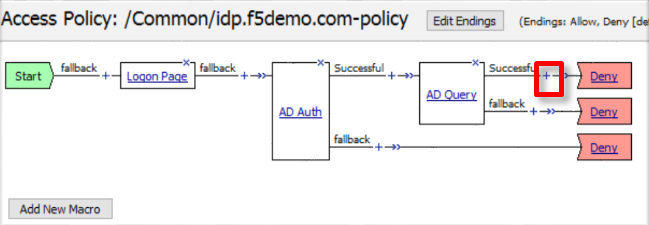

27. In the Visual Policy Editor window for /Common/idp.f5demo.com‑policy, click the Plus (+) Sign on the successful branch between AD Query and Deny

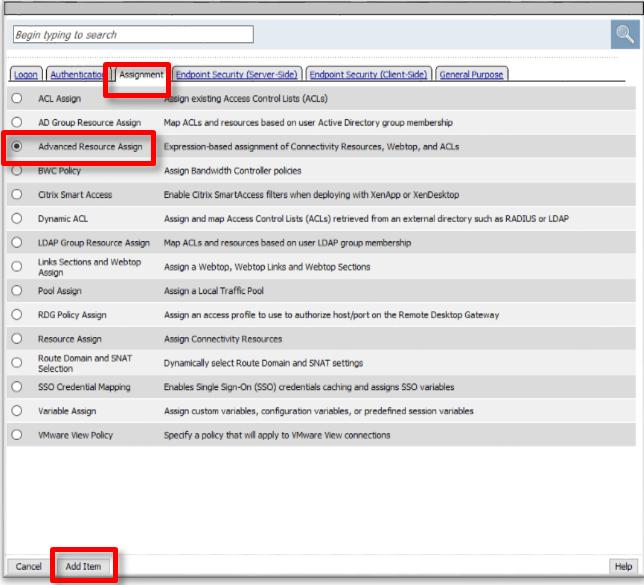

28. In the pop-up dialog box, select the Assignment tab and then select the Radio next to Advanced Resource Assign, and click the Add Item button



29. In the resulting Advanced Resource Assign pop-up window, click the Add New Entry button

30. In the new Resource Assignment entry, click the Add/Delete link

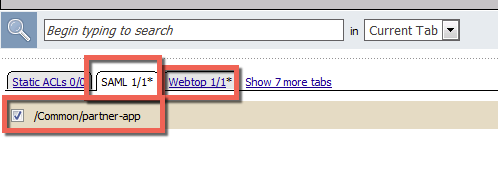

31. In the resulting pop-up window, click the SAML tab, and select the Checkbox next to /Common/partner-app

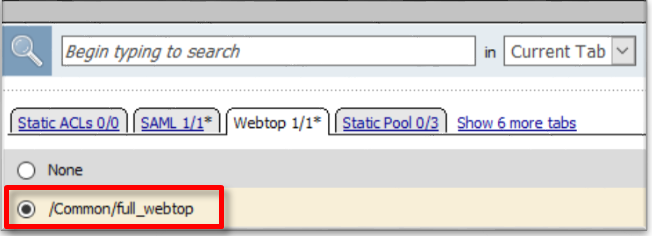

32. Click the Webtop tab, and select the Checkbox next to /Common/full_webtop



33. Click the Update button at the bottom of the window to complete the Resource Assignment entry

34. Click the Save button at the bottom of the Advanced Resource Assign window

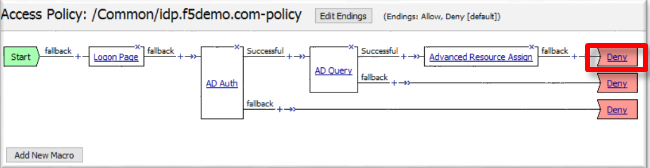

35. In the Visual Policy Editor, select the Deny ending on the fallback branch following Advanced Resource Assign

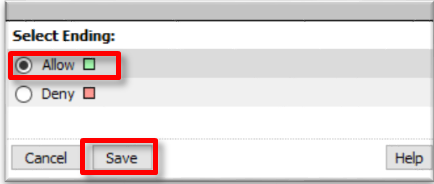

36. In the Select Ending dialog box, selet the Allow radio button and then click Save

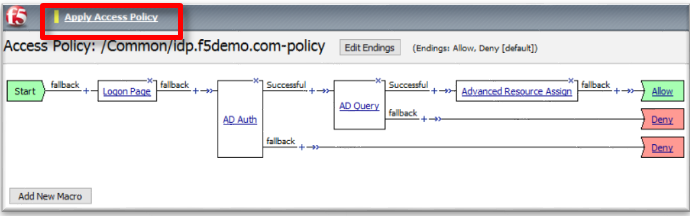

37. In the Visual Policy Editor, click Apply Access Policy (top left), and close the Visual Policy Editor



TASK 3 - Create the IdP Virtual Server and Apply the IdP Access Policy

1. Begin by selecting Local Traffic ‑> Virtual Servers

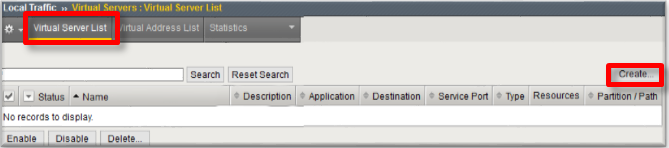

2. Click the Create button (far right)

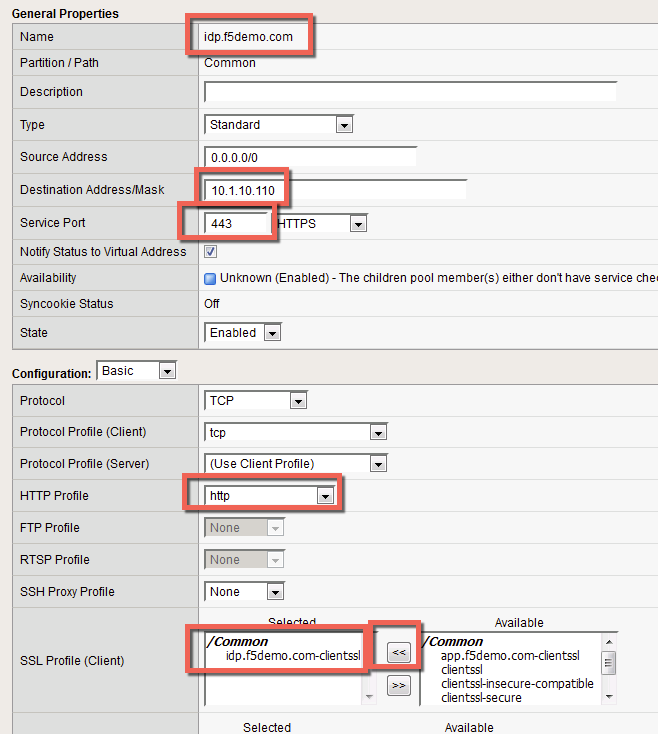

3. In the New Virtual Server window, enter the following information:

   General Properties
   Name:	idp.f5demo.com
   Destination Address/Mask:	10.1.10.110
   Service Port:	443

   Configuration
   HTTP Profile:	http (drop down)
   SSL Profile (Client)	idp.f5demo.com‑clientssl

   Access Policy

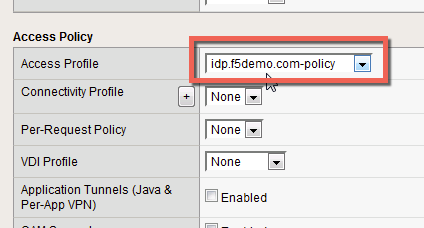

   Access Profile:	idp.f5demo.com‑policy








4. Scroll to the bottom of the configuration window and click Finished

TASK 4 - Test the SAML IdP

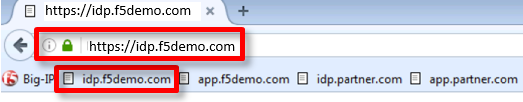

1. Using your browser from the jump host, navigate to the SAML IdP you just configured at https://idp.f5demo.com (or click the provided bookmark)



2. Log in to the IdP. Were you successfully authenticated? Did you see the webtop with the SP application?

   Note

   Use the credentials provided in the Authentication section at the beginning of this guide (user/Agility1)

3. Click on the Partner App icon. Were you successfully authenticated (via SAML) to the SP?

4. Review your Active Sessions (Access ‑> Overview ‑> Active Sessions­­­)

5. Review your Access Report Logs (Access ‑> Overview ‑> Access Reports)
